ZSK Machines for Fibers and Wires

ZSK Technical Embroidery Systems offer new and innovative techniques of fixing and laying different media on textiles and other material.

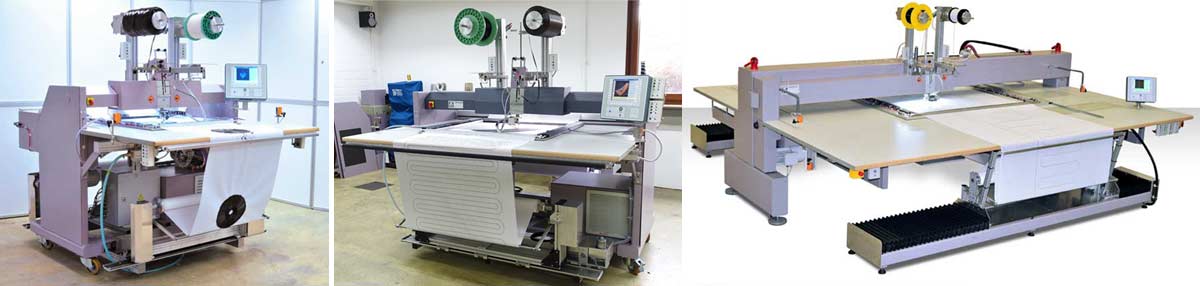

	JCW 0100-500 (700)	JGW 0100-650 SKW (700)	SGW 0100-1375 (1200)
No of laying heads	1	1	1
Head distance	n.a.	n.a.	n.a.
Fabric feeding direction	1 x back to front	1 x back to front	1 x back to front
Fabric feeding system	semi-automatic	automatic	automatic
Max laying depth	600 mm	600 mm -multiple	1100 mm - multiple
Max laying width	450 mm	670 mm	1200 mm
max fabric width	620 mm	820 mm	1400 mm
Max frame travelling l/r	450 mm	670 mm	1375 mm
Machine net size l/w	1600 mm x 1800 mm	1600 mm x 1800 mm	4100 mm x 3800 mm

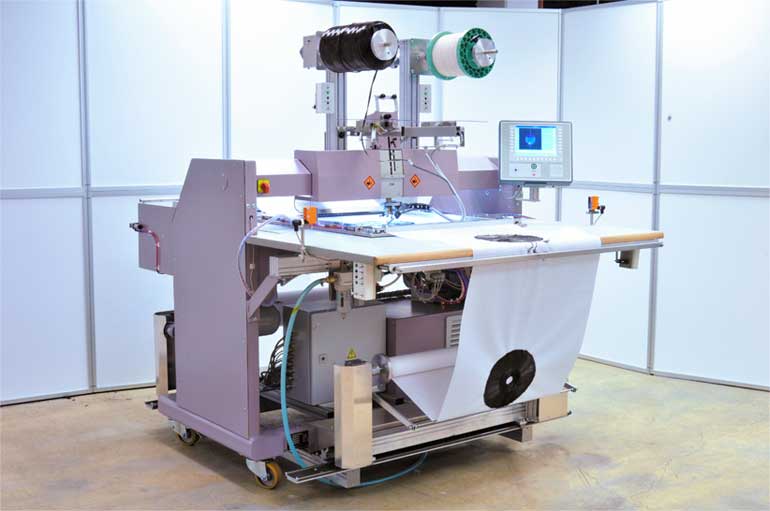

JCW 0100-500 (700)
No of laying heads	1
Head distance	n.a.
Fabric feeding direction	1 x back to front
Fabric feeding system	semi-automatic
Max laying depth	600 mm
Max laying width	450 mm
max fabric width	620 mm
Max frame travelling l/r	450 mm
Machine net size l/w	1600 mm x 1800 mm

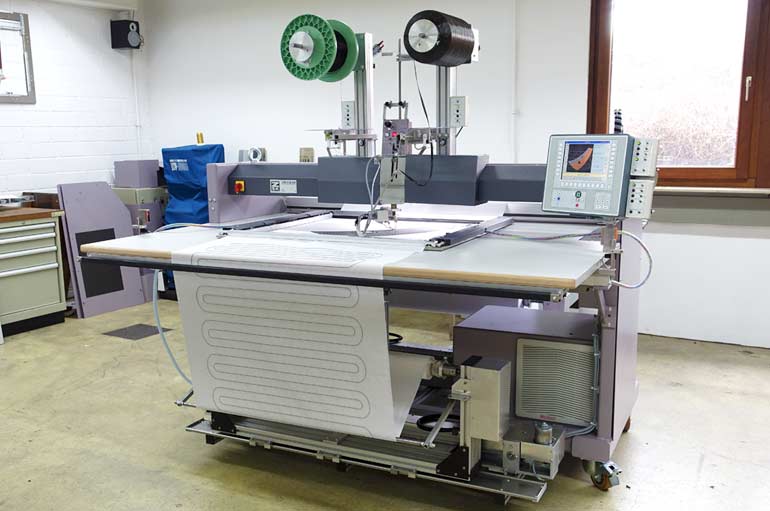

JGW 0100-650 SKW (700)
No of laying heads	1
Head distance	n.a.
Fabric feeding direction	1 x back to front
Fabric feeding system	automatic
Max laying depth	600 mm -multiple
Max laying width	670 mm
max fabric width	820 mm
Max frame travelling l/r	670 mm
Machine net size l/w	1600 mm x 1800 mm

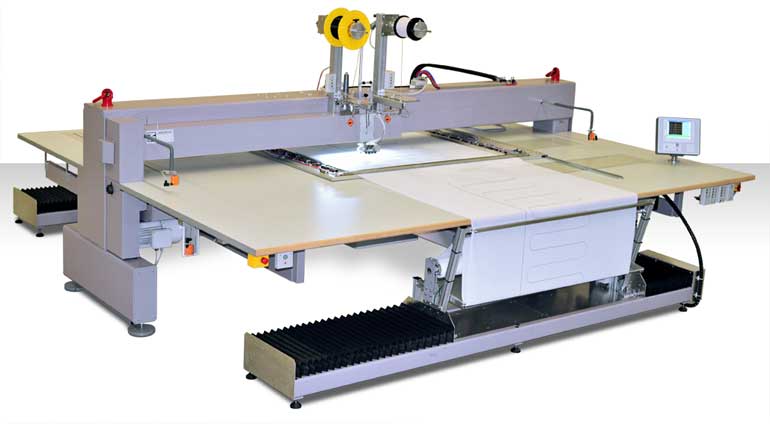

SGW 0100-1375 (1200)
No of laying heads	1
Head distance	n.a.
Fabric feeding direction	1 x back to front
Fabric feeding system	automatic
Max laying depth	1100 mm - multiple
Max laying width	1200 mm
max fabric width	1400 mm
Max frame travelling l/r	1375 mm
Machine net size l/w	4100 mm x 3800 mm

	ZCW 0400-1800 (1500)	YCW 0600-1180 (1500)	ZCW 0800-900D (1500)
No of laying heads	4	6	8
Head distance	1800 mm	1180 mm	900 mm
Fabric feeding direction	left to right	6 x back to front	left to right
Fabric feeding system	semi-automatic	automatic	semi-automatic
Max laying depth	1200 mm	1400 mm	1200 mm
Max laying width	4 x 1800 mm	6 x 700 mm	8 x 900 mm / 4 x 1800 mm
max fabric width	1400 mm	6 x 900 mm	1400 mm
Max frame travelling l/r	2150 mm	700 mm	2150 mm
Machine net size l/w	13000 mm x 3500 mm	8900 mm x 3600 mm	13000 mm x 3500 mm

ZCW 0400-1800 (1500)
No of laying heads	4
Head distance	1800 mm
Fabric feeding direction	left to right
Fabric feeding system	semi-automatic
Max laying depth	1200 mm
Max laying width	4 x 1800 mm
max fabric width	1400 mm
Max frame travelling l/r	2150 mm
Machine net size l/w	13000 mm x 3500 mm

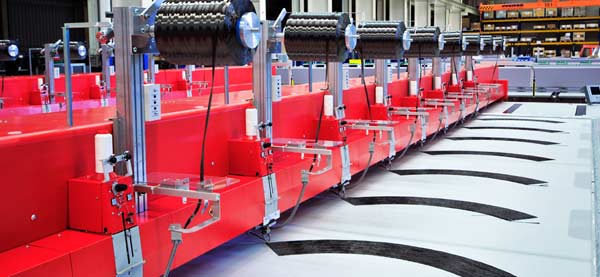

YCW 0600-1180 (1500)
No of laying heads	6
Head distance	1180 mm
Fabric feeding direction	6 x back to front
Fabric feeding system	automatic
Max laying depth	1400 mm
Max laying width	6 x 700 mm
max fabric width	6 x 900 mm
Max frame travelling l/r	700 mm
Machine net size l/w	8900 mm x 3600 mm

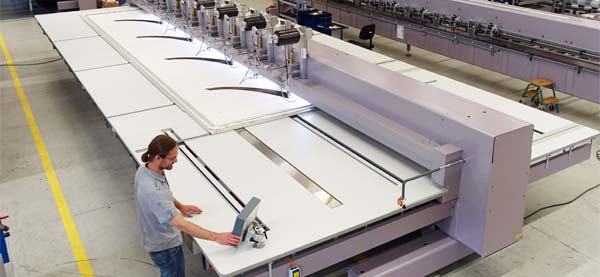

ZCW 0800-900D (1500)
No of laying heads	8
Head distance	900 mm
Fabric feeding direction	left to right
Fabric feeding system	semi-automatic
Max laying depth	1200 mm
Max laying width	8 x 900 mm / 4 x 1800 mm
max fabric width	1400 mm
Max frame travelling l/r	2150 mm
Machine net size l/w	13000 mm x 3500 mm
